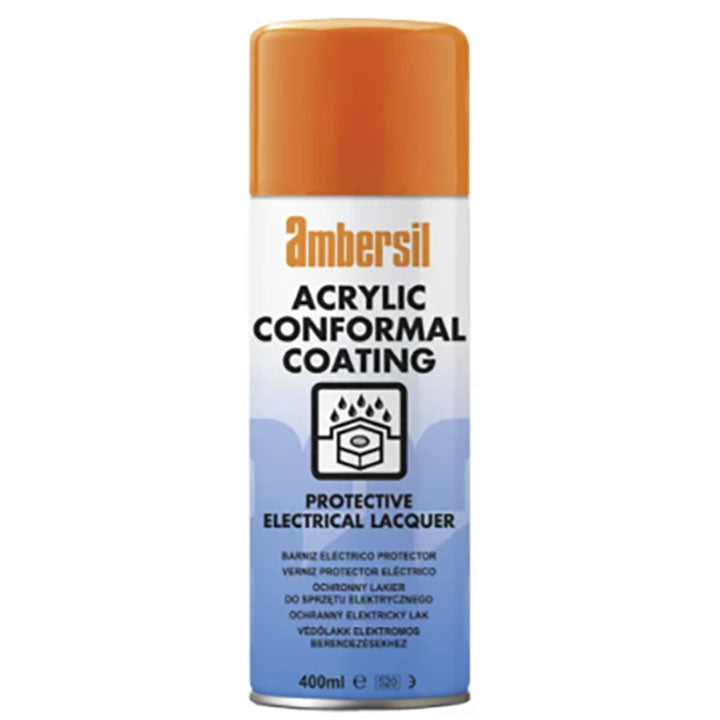

Ambersil Transparent Acrylic Resin Conformal Coating
Acrylic conformal coating is a transparent, quick-drying, insulating and protective coating based on acrylic resins. A low-viscosity, solvent-drying, acrylic-based conformal coating with excellent insulating properties. The lacquer is transparent and flexible. It has a durable adhesion in the temperature range from -40°C to +60°C and can be used for a short period of time up to +100°C maximum. It protects printed circuit boards and surfaces from humid inorganic acid or caustic vapours. Specially developed to protect printed circuit boards. It prevents electrical leakages and short circuits. As a low viscosity fixing and insulating lacquer, Acrylic conformal coating can also be used as extra/after insulation of coils and transformers and reduces operational noise.
- 400ml fill size.
- 1.4m²/400ml spray coverage at 20μm, calculated.
- 10-20mPas viscosity bulk
- Flashpoint 0°C
- Drying time at 20°C (dry to touch) ±20 minutes.
- Transparent film colour
- Dielectric strength 80KV/mm (after 24hrs drying at ambient temperature, thickness 20-40μm)
- Anti-corrosion
- Surface resistivity at 20°C 10¹³
- Volume resistivity at 20°C 10¹³cm
Ambersil Transparent Acrylic Resin Conformal Coating
1
Stoke-on-Trent
Campbell Road
Stoke-on-Trent ST4 4ET
United Kingdom
Acrylic conformal coating is a transparent, quick-drying, insulating and protective coating based on acrylic resins. A low-viscosity, solvent-drying, acrylic-based conformal coating with excellent insulating properties. The lacquer is transparent and flexible. It has a durable adhesion in the temperature range from -40°C to +60°C and can be used for a short period of time up to +100°C maximum. It protects printed circuit boards and surfaces from humid inorganic acid or caustic vapours. Specially developed to protect printed circuit boards. It prevents electrical leakages and short circuits. As a low viscosity fixing and insulating lacquer, Acrylic conformal coating can also be used as extra/after insulation of coils and transformers and reduces operational noise.
- 400ml fill size.
- 1.4m²/400ml spray coverage at 20μm, calculated.
- 10-20mPas viscosity bulk
- Flashpoint 0°C
- Drying time at 20°C (dry to touch) ±20 minutes.
- Transparent film colour
- Dielectric strength 80KV/mm (after 24hrs drying at ambient temperature, thickness 20-40μm)
- Anti-corrosion
- Surface resistivity at 20°C 10¹³
- Volume resistivity at 20°C 10¹³cm
