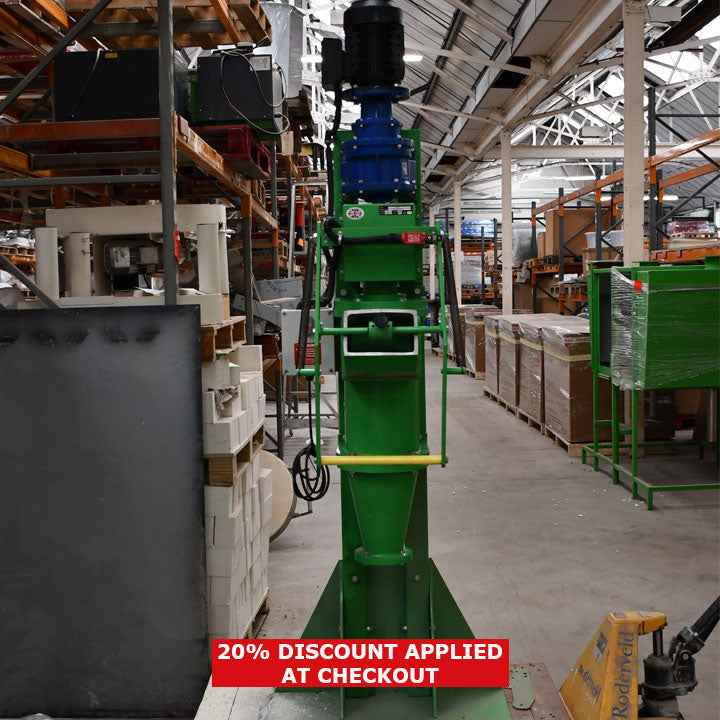

Gladstone G55 Vertical Pugmill Refurbished
Has a slight ‘knock’ when switched on but this has no effect on performance. In full working order.
The pugmill is mounted vertically, creating the added benefit of a small footprint as regards to the space they require. Yet, due to the design, they offer superior performance over conventional horizontal machines.
The Vertical pugmill is manufactured from heavy, section cast Aluminium castings and have individually mounted auger blades which can be altered to change the configuration. This allows the pugmill to suit different Clays and extrusion applications. The Auger is mounted through two taper thrust bearings and is driven via a flexible coupling from a inline helical geared motor.
The pugmill are most suited to users who frequently recycle larger quantities of Clay than the standard horizontal pugmills.
- Drive Motor: 1.1Kw (1.5 Hp) reduction drive gearbox direct drive 230/ 400v
- Output: Approximately 700 Kg per hour
- Dimensions: 760mm long x 760mm wide x 2300mm high
- Construction: Cast Aluminium 200mm barrel with 100mm extrusion, Split body to facilitate easy cleaning
- Finish: Durable two stage coated finish
Gladstone G55 Vertical Pugmill Refurbished
1
Stoke-on-Trent
Campbell Road
Stoke-on-Trent ST4 4ET
United Kingdom
Has a slight ‘knock’ when switched on but this has no effect on performance. In full working order.
The pugmill is mounted vertically, creating the added benefit of a small footprint as regards to the space they require. Yet, due to the design, they offer superior performance over conventional horizontal machines.
The Vertical pugmill is manufactured from heavy, section cast Aluminium castings and have individually mounted auger blades which can be altered to change the configuration. This allows the pugmill to suit different Clays and extrusion applications. The Auger is mounted through two taper thrust bearings and is driven via a flexible coupling from a inline helical geared motor.
The pugmill are most suited to users who frequently recycle larger quantities of Clay than the standard horizontal pugmills.
- Drive Motor: 1.1Kw (1.5 Hp) reduction drive gearbox direct drive 230/ 400v
- Output: Approximately 700 Kg per hour
- Dimensions: 760mm long x 760mm wide x 2300mm high
- Construction: Cast Aluminium 200mm barrel with 100mm extrusion, Split body to facilitate easy cleaning
- Finish: Durable two stage coated finish
