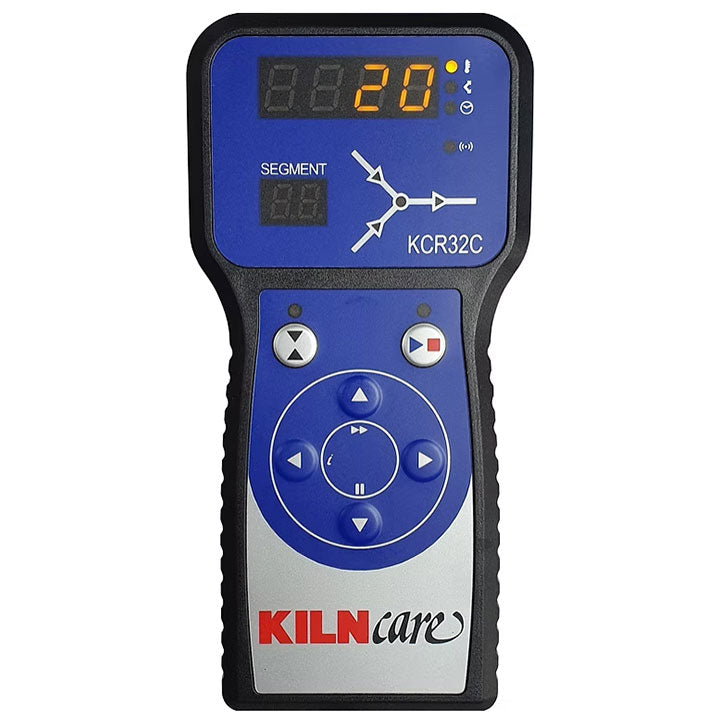

Kilncare KCR32CWIFi Ikon Kiln Controller

The KCR32CWIFi is internally the same as the KCR32C but has the capability to be accessed and controlled remotely from your mobile device.

This is one of the most important advances in Kilncare kilns for many years.

Using Kilcare’s GATEway app on your mobile device, or the GATEway direct internet access site on pc or MAC, you can view how your kiln is running in real time. Stop the firing or adjust programs all without even being in the same country let alone the same room.

The KCR32CWIFI is also fitted with a USB port that allows programs to be entered that way direct from the app or pc if required and also allows us to apply updates and run diagnostics without travelling to your kiln.

The KCR32CWIFI is a genuine game changer and can be fitted to ANY of the Kilncare range of kilns.

Features:

• 32 programs - each with up to 32 segments.
• Each segment is a controlled heating/cooling ramp soak.
• Suitable for glass or ceramics use.
• Soak times up to nearly 100 hours.
• Ramp rates from 1 to 999°C/hour full.
• Program Pause & Segment Advance facilities.
• Keyboard lockable.
• Delayed start facility - up to 4 days.
• Mains power switch.
• App and internet access to kiln status and programs, real time monitoring from your mobile device via the GATEway app, available on Android or Apple, or any device, anywhere with internet access via the Kilncare website GATEway.
• Power failure recovery.
• Energy used display.
• Event / Damper / Fan relay output.
• Alarm relay with alarm buzzer.
• Built in the United Kingdom.

The Kilncare GATEway:

The driving force behind the KCR32CWIFI is the Kilncare GATEway which is the online access tool to the controller.

The GATEway is available as an app on Android or Apple for your mobile device, or direct access from a pc.

Once registered for the GATEway you have a host of invaluable tools to use with your KCR32CWIFI without actually being with the controller.... or even in the same country.

The tools include:

• See the kilns temperature and status real time.
• Review the program that the kiln is firing at the time.
• View all programs installed into the controller.
• Create and name new programs and send them into the controller.
• View all programs in graph form.
• Stop the kiln if required.
• Monitor for kiln fault alerts.
• Monitor and use multiple kilns and KCR32CWIFI controllers from the one registration.
• Name each kiln and controller.
