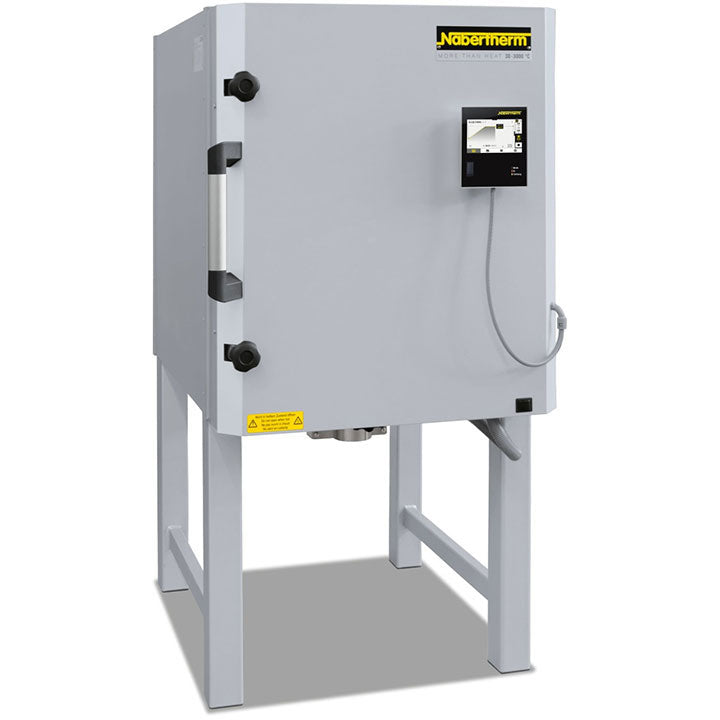

Nabertherm N 280E Chamber Pottery Kiln

The Nabertherm N 280E front loading kiln is an economical solution for schools, ceramic workshops, and studios and other institutions. Ideal for operating temperatures of approximately 900°C or 1300°C. A dual shell housing provides for low outer temperatures. The controller can comfortably set firing profiles.

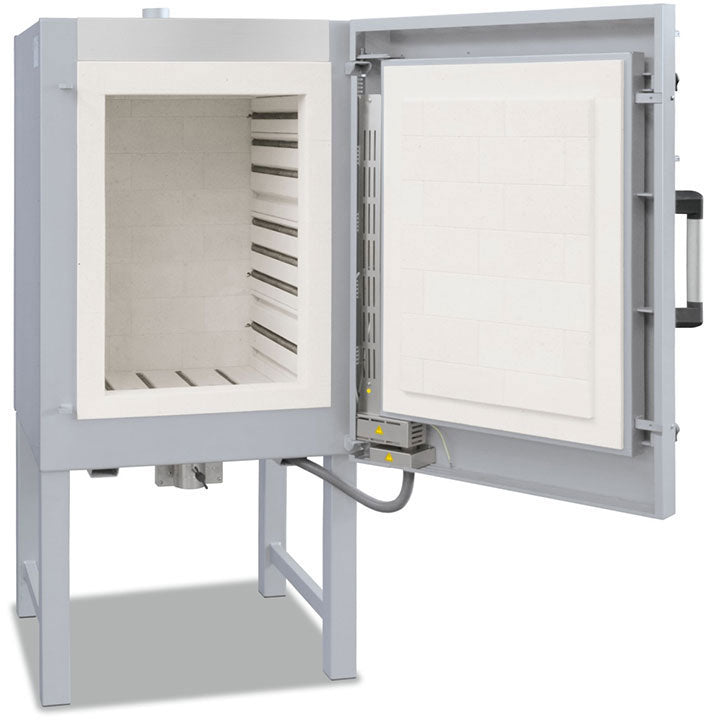

• Multi-layer insulation with light weight refactory bricks and energy-saving backing insulation adapted to the maximum temperature of the kiln.

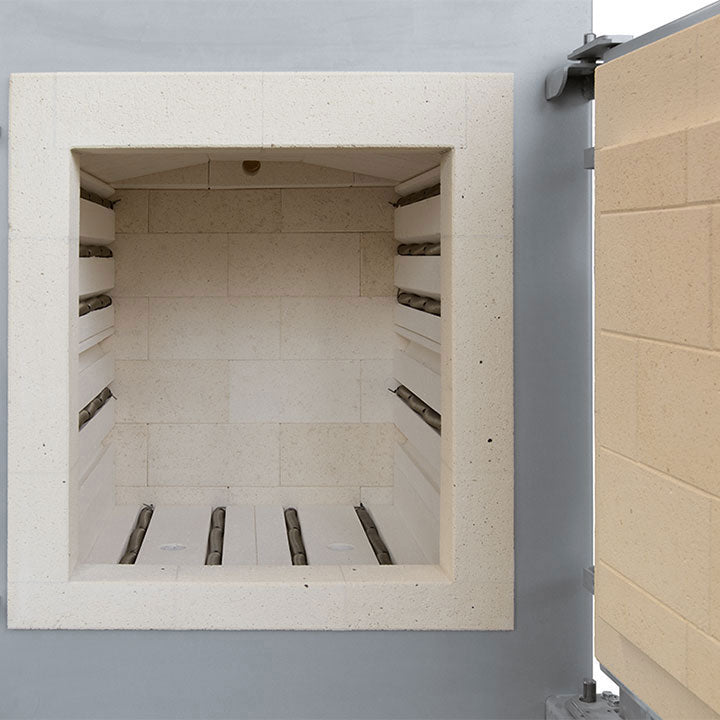

• Heating from three sides and a special arrangement of the heating elements ensure optimum temperature uniformity.
• Includes 3 ceramic supports and lower shelf to protect the bottom insulation and for safe stacking of the kiln furniture. (Kiln Furniture Sold Separately)

Specifications:

• Firing Capacity: 280 Litre
• Maximum user temperature (highest temperature the kiln goes to): 1340°C.
• Maximum application temperature (temperature upon repeated firing use for longevity) 1300°C
• Environment-friendly, long-life powder-coating of housing.
• Rugged, self-supporting, vaulted arch construction.
• Dual shell door with long live sealing, sealing grinded by hand (brick on brick), door is adjustable.
• Supply required 3 phase (Amps) 25a.
• Includes DEKRA certification.
• Weight: 375kg

Safety features:

• Heating elements on support tubes ensure free heat radiation.
• Type S thermocouple.
• Dual-shell housing provides for low temperature and optimal corrosion protection. Galvanized steel sheets on the sides.
• Door safety switch shuts down power to the elements when the door is opened.

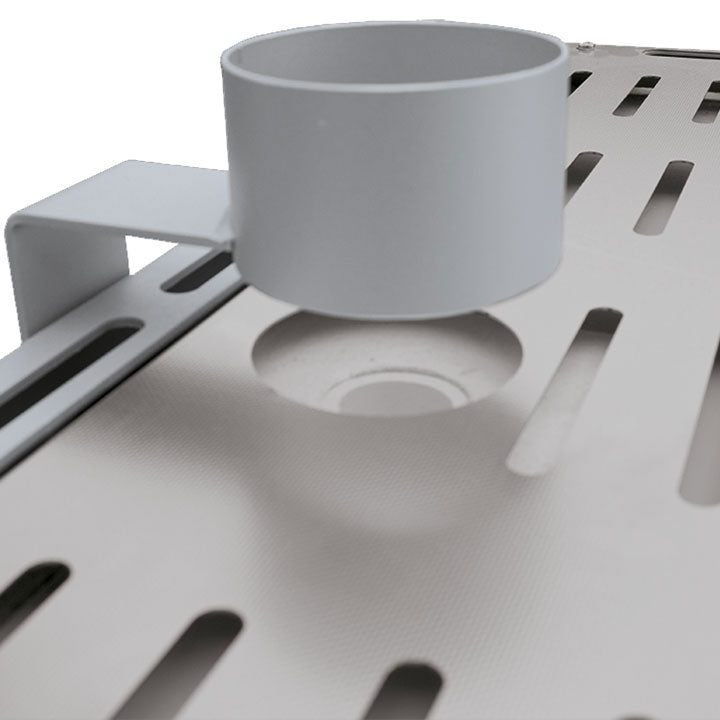

• Semi-automatic air inlet flap for residual drying in chamber up to 300 Litres. Flap closes automatically at a set temperature, does not have to be closed manually after the drying phase.
• Solid state relays low-noise heater operation.
• Protected door contact switch

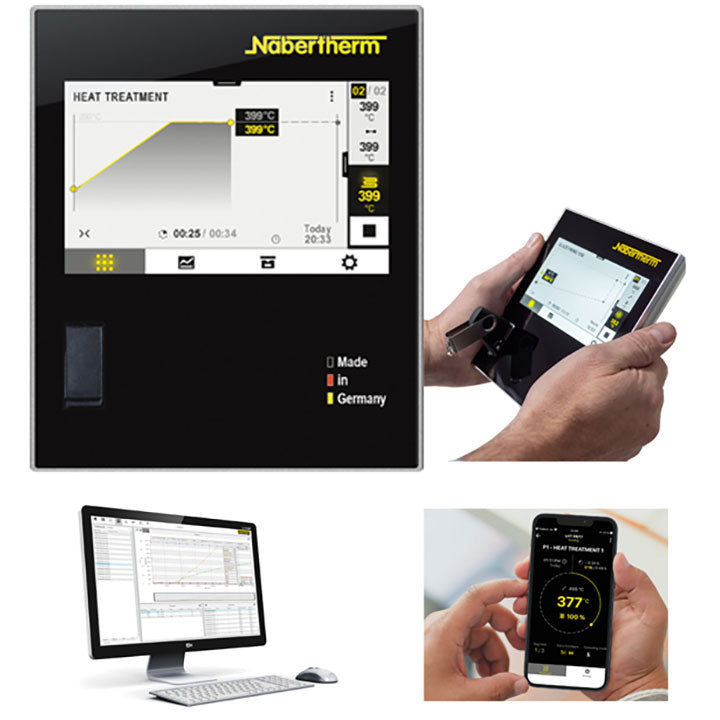

Controllers:

• B500 touch operation controller with 5 programs each with 4 segments. WI-FI capable to operate with Nabertherm App - The B500 controller is the standard one supplied with the kiln.
• C540 has the same functions as the B500 but the larger memory means you can store 10 programs with 20 segments each.
