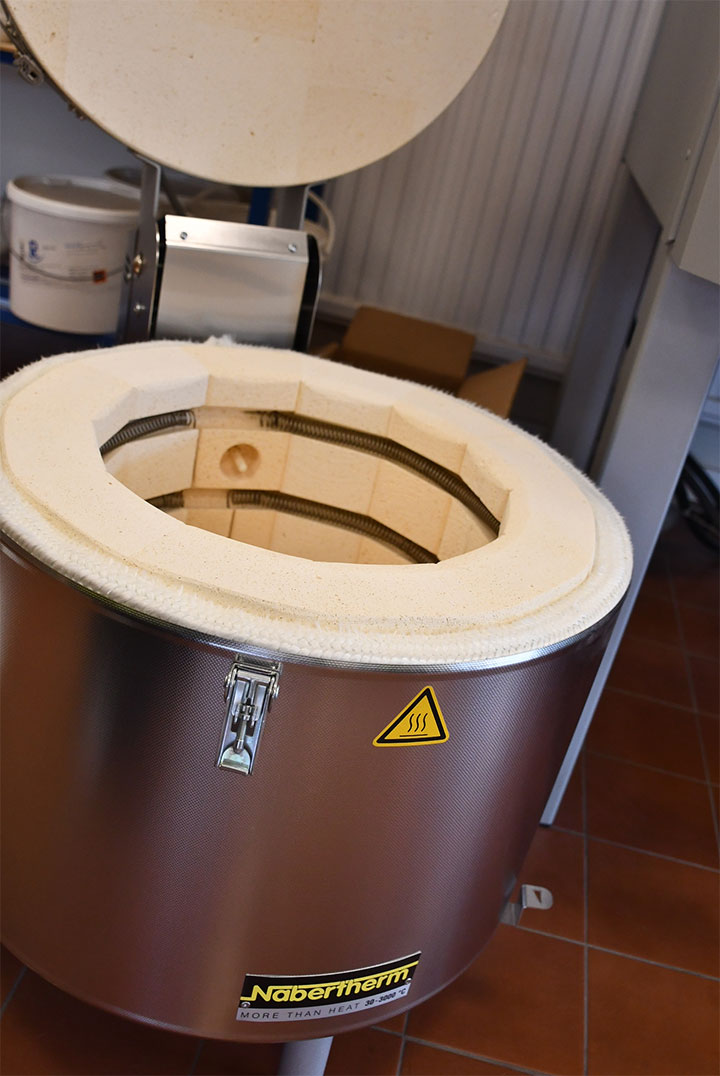

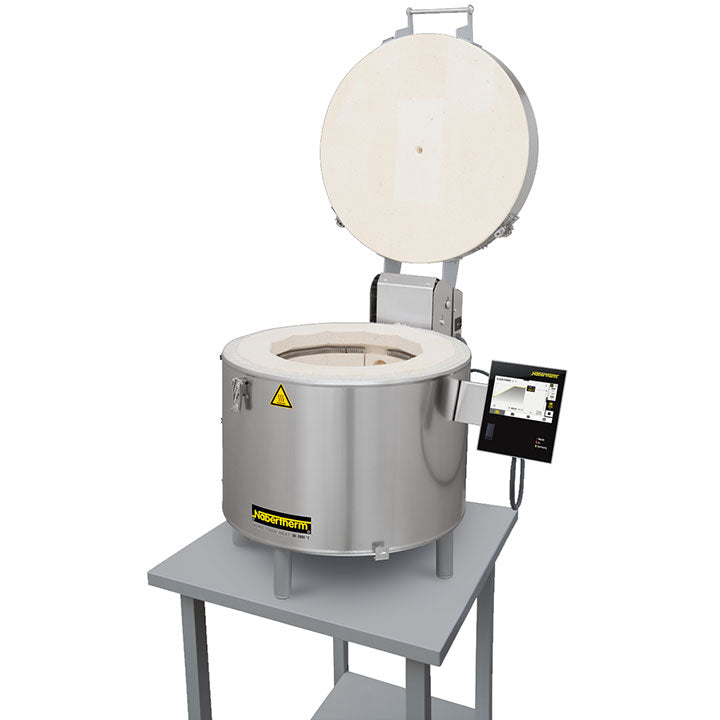

Nabertherm Top 16/R Toploading Pottery Kiln Ex-Display
Ex-display model in full working order.
The Nabertherm Top 16/R pottery kiln is the perfect kiln for hobbyists or a workshop. The kiln has an attractive design, low weight and good firing results are just a few of the advantages. This small top loader kiln is perfectly suited for glaze, sample firing or for a beginner's studio.

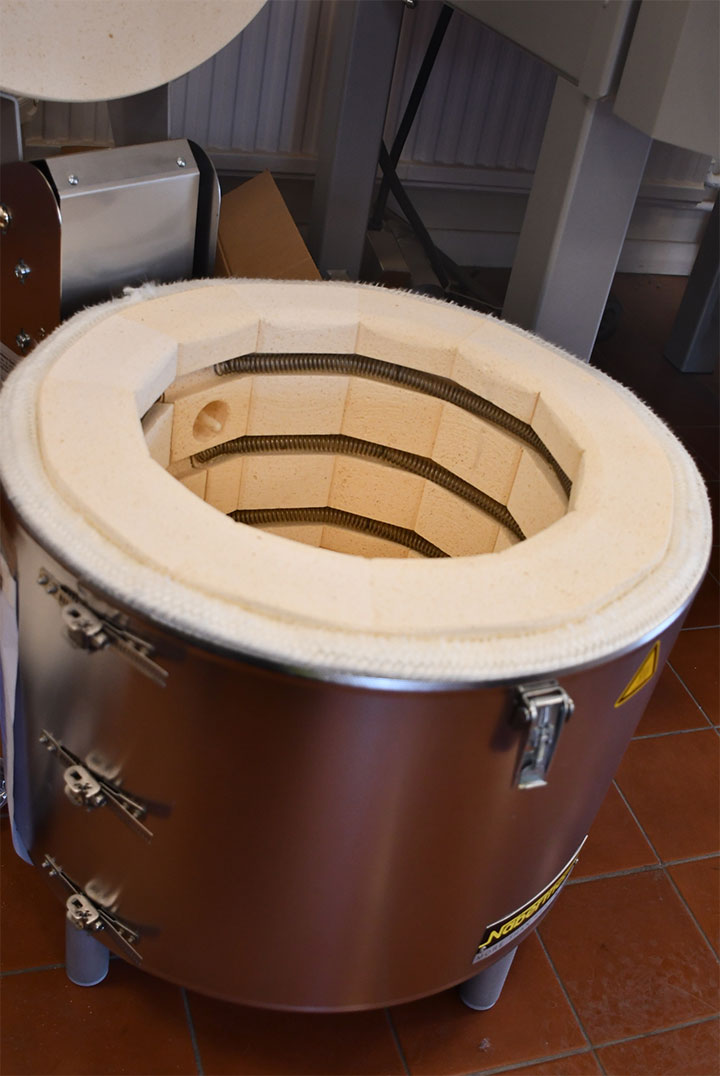

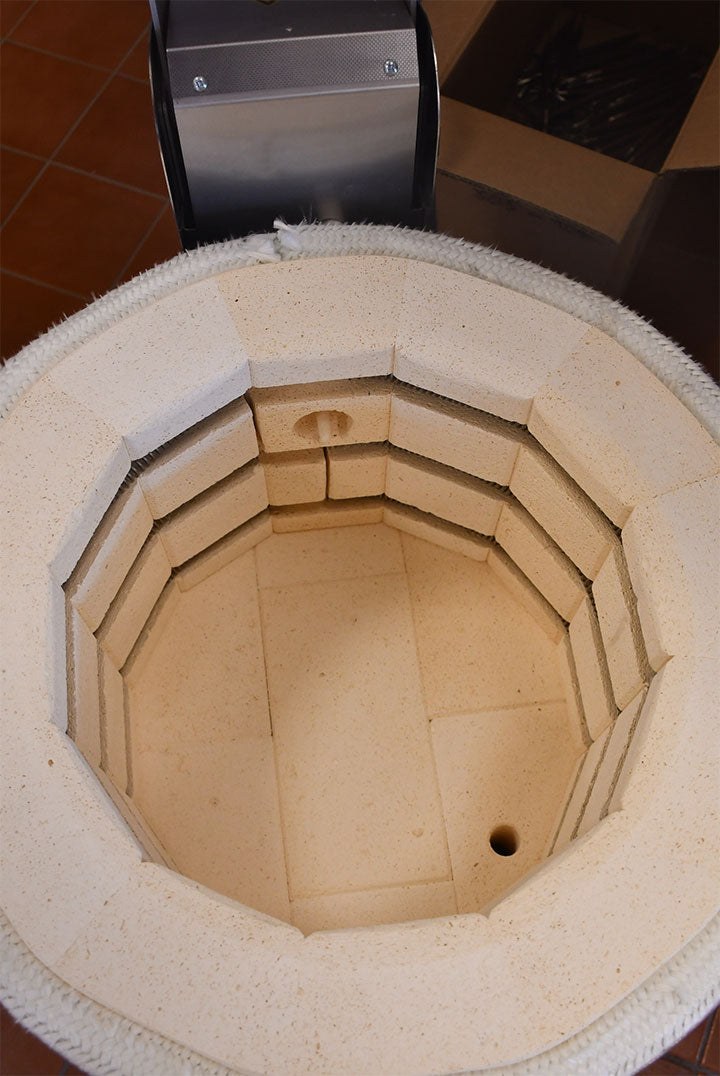

- Three-layer insulation with light refractory bricks and high quality, energy saving backing insulation.
- Top quality heating elements, optimum wire gauge and length for long life.
- Rapid switching cycles result in precise temperature control.
Specifications:
- Firing Capacity: 16 Litre
- Maximum user temperature (highest temperature the kiln goes to): 1320°C.
- Maximum application temperature (temperature upon repeated firing use for longevity) 1290°C
- Housing made from sheets of textured stainless steel.
- Lockable castors for easy transportation of kiln without the need for lifting.
- High quality, energy saving, special purpose back insulation

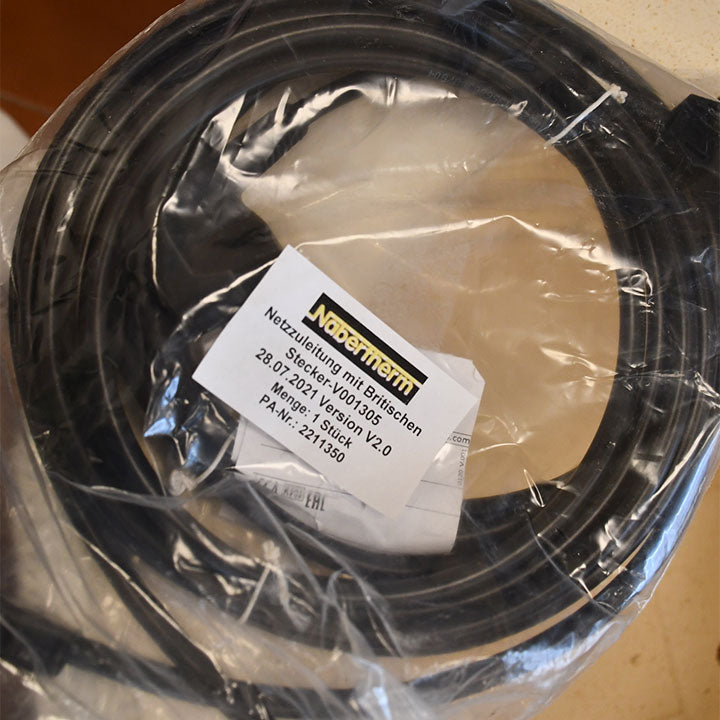

- Supply required single phase (Amps) 11.3a.
- Includes DEKRA certification.
- Weight: 32kg
- No Warranty
Safety Features:
- Heating elements protected in grooves, heating from all around.
- Type S thermocouple.
- Multiple layers of insulation for low power consumption and low exterior temperatures
- Lid with adjustable quick release lock and padlock hasp.
- Wear free lid seal (brick on brick)
- Powerful gas dampers make lid opening extremely easy.
- Infinitely adjustable air inlet in opening in the kiln bottom for good ventilation and short cooling times.
- Exhaust air outlet on furnace side with stub for pipe of 80mm diameter.

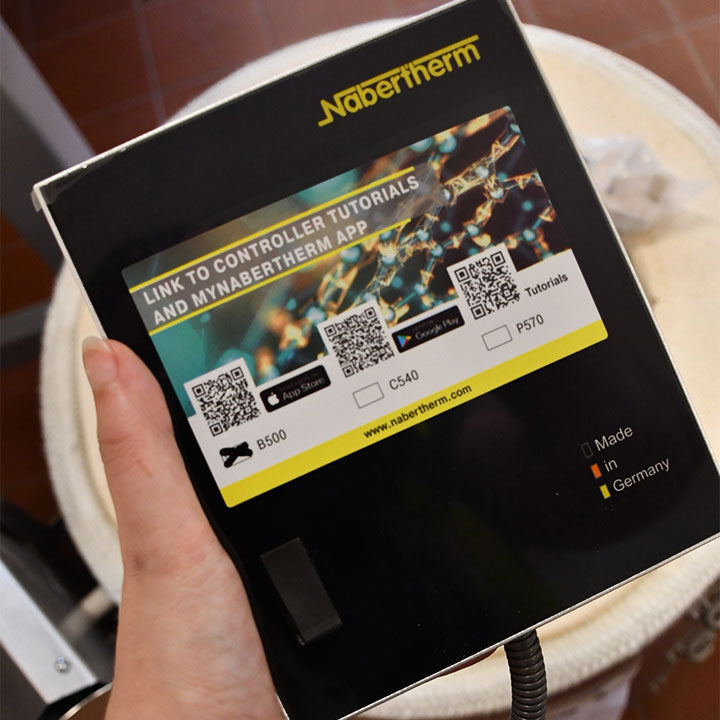

Includes B500 Controller:
the user-friendly B500 Controller, designed for both simplicity and versatility. This touch screen controller is Wi-Fi capable and integrates seamlessly with the MyNabertherm App, allowing easy and individual programming.
Key Features:
- Touch Screen Interface: Easy to use with intuitive touch controls.
- Wi-Fi Capable: Connects with the MyNabertherm App for remote monitoring and control.
- Programmable: Store up to 5 different programs.
- Delayed Start: Schedule kiln operations to take advantage of off-peak electricity rates.
- Customizable Segments: 4 freely adjustable segments per program for precise firing control.
- Incremental Input: Set points can be adjusted in 1°C and 1-minute increments.
- Skip and Extend: Bypass segments or extend hold times during a program run.
Nabertherm Top 16/R Toploading Pottery Kiln Ex-Display
B500 Controller
Stoke-on-Trent
Campbell Road
Stoke-on-Trent ST4 4ET
United Kingdom
Ex-display model in full working order.
The Nabertherm Top 16/R pottery kiln is the perfect kiln for hobbyists or a workshop. The kiln has an attractive design, low weight and good firing results are just a few of the advantages. This small top loader kiln is perfectly suited for glaze, sample firing or for a beginner's studio.
- Three-layer insulation with light refractory bricks and high quality, energy saving backing insulation.
- Top quality heating elements, optimum wire gauge and length for long life.
- Rapid switching cycles result in precise temperature control.
Specifications:
- Firing Capacity: 16 Litre
- Maximum user temperature (highest temperature the kiln goes to): 1320°C.
- Maximum application temperature (temperature upon repeated firing use for longevity) 1290°C
- Housing made from sheets of textured stainless steel.
- Lockable castors for easy transportation of kiln without the need for lifting.
- High quality, energy saving, special purpose back insulation
- Supply required single phase (Amps) 11.3a.
- Includes DEKRA certification.
- Weight: 32kg
- No Warranty
Safety Features:
- Heating elements protected in grooves, heating from all around.
- Type S thermocouple.
- Multiple layers of insulation for low power consumption and low exterior temperatures
- Lid with adjustable quick release lock and padlock hasp.
- Wear free lid seal (brick on brick)
- Powerful gas dampers make lid opening extremely easy.
- Infinitely adjustable air inlet in opening in the kiln bottom for good ventilation and short cooling times.
- Exhaust air outlet on furnace side with stub for pipe of 80mm diameter.
Includes B500 Controller:
the user-friendly B500 Controller, designed for both simplicity and versatility. This touch screen controller is Wi-Fi capable and integrates seamlessly with the MyNabertherm App, allowing easy and individual programming.
Key Features:
- Touch Screen Interface: Easy to use with intuitive touch controls.
- Wi-Fi Capable: Connects with the MyNabertherm App for remote monitoring and control.
- Programmable: Store up to 5 different programs.
- Delayed Start: Schedule kiln operations to take advantage of off-peak electricity rates.
- Customizable Segments: 4 freely adjustable segments per program for precise firing control.
- Incremental Input: Set points can be adjusted in 1°C and 1-minute increments.
- Skip and Extend: Bypass segments or extend hold times during a program run.
Height | 560.0 |
---|---|
Width | 490.0 |
Depth | 740.0 |
Kilns Firing Capacity | 16 |
Kilns Maximum User Temperature | 1320 |
Kilns Maximum Application Temperature | 1290 |
Kilns Chamber Height | 230.0 |
Kilns Chamber Width | 290.0 |
Kilns Chamber Depth | 290.0 |
