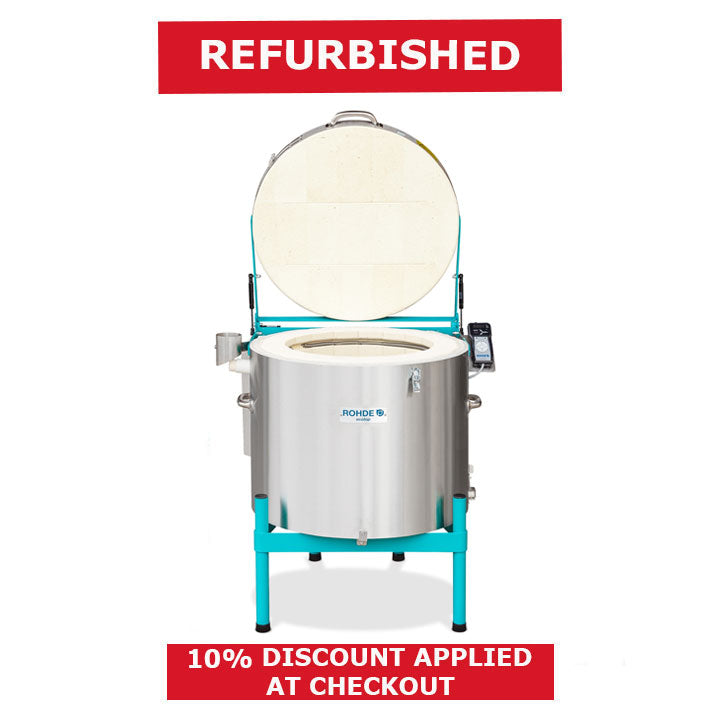

Rohde Four Ecotop 60 Top Loading Kiln Refurbished
Refurbished and tested in full working order.
The Ecotop60 top loading kiln, with a volume of 60 litres, is an oven from the Ecotop series designed for temperatures up to 1300 °C.
The future-oriented models of the Ecotop series belong to the latest generation of ROHDE developments. Currently one of the most economical ovens on the market, the Ecotop is distinguished by a new insulation concept – so far unique – that ensures very high energy efficiency.
Its 2-layer insulation with a premium 35mm microporous back insulation allows safe firing at temperatures for stoneware.
Specifications:
- Optimal heating temperature: 1260°C
- Max temperature: 1300°C
- Internal dimensions W x D x H (mm): Ø 400 x 455
- External dimensions W x D x H (mm): 755 x 730 x 775
- Voltage: Single Phase
- Power: 3.6 kW
- Amperage: 16 A

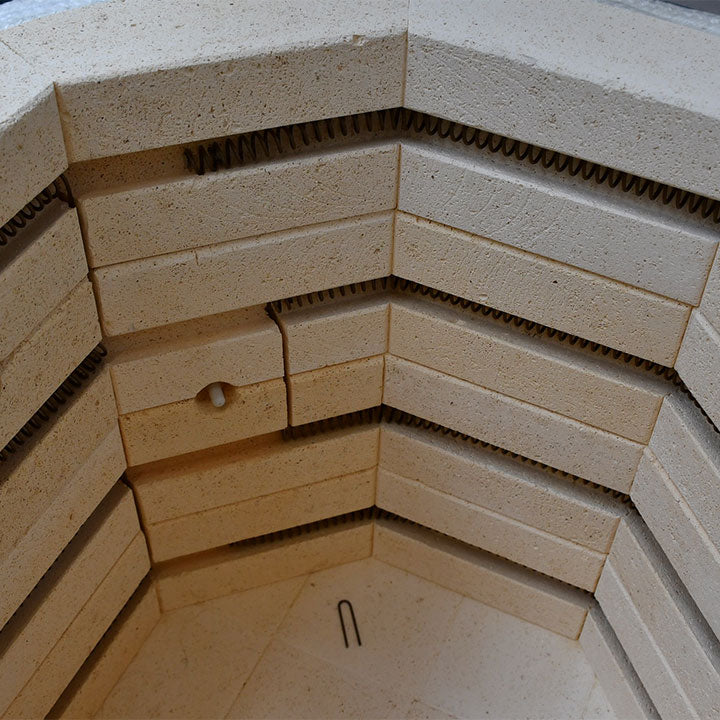

- 2-layer insulation concept with 35mm microporous insulation board
- Socket supplied: Yes, 16A
- Thermocouple: Type S
- Insulation: Brick + 2 layers of 35 mm microtherm
- Reversible foot
- Lid opening assisted by gas struts
- Coating: Brushed stainless steel
- Upgradeable: No
- Plate dimensions: 350 mm

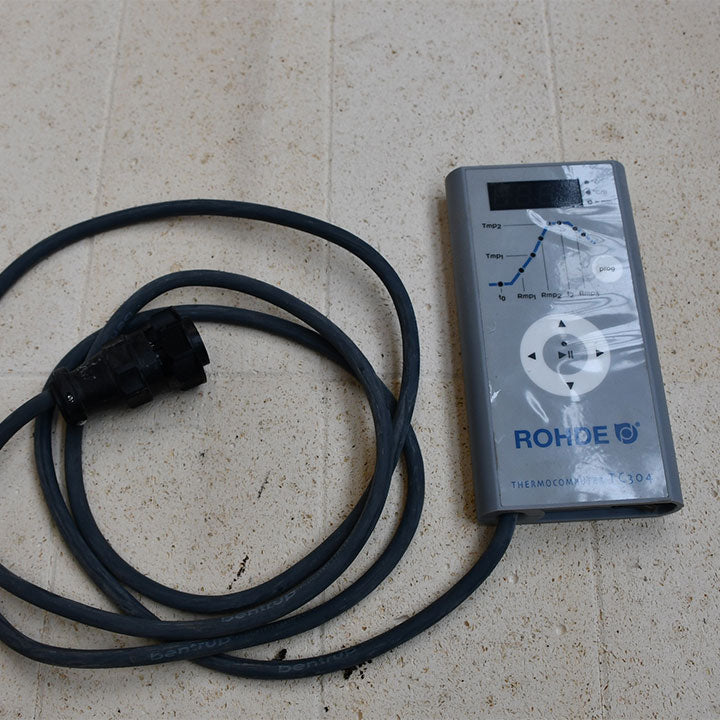

Includes TC 30 Controller:
Range of application:
Ceramics, laboratory Clearly structured control unit and easy to operate, for use in workshops, schools and hobby rooms.
- 5 firing programs, freely adjustable Delayed start programmable
- 1 dwell/soak time freely programmable
Rohde Four Ecotop 60 Top Loading Kiln Refurbished
1
Stoke-on-Trent
Campbell Road
Stoke-on-Trent ST4 4ET
United Kingdom
Refurbished and tested in full working order.
The Ecotop60 top loading kiln, with a volume of 60 litres, is an oven from the Ecotop series designed for temperatures up to 1300 °C.
The future-oriented models of the Ecotop series belong to the latest generation of ROHDE developments. Currently one of the most economical ovens on the market, the Ecotop is distinguished by a new insulation concept – so far unique – that ensures very high energy efficiency.
Its 2-layer insulation with a premium 35mm microporous back insulation allows safe firing at temperatures for stoneware.
Specifications:
- Optimal heating temperature: 1260°C
- Max temperature: 1300°C
- Internal dimensions W x D x H (mm): Ø 400 x 455
- External dimensions W x D x H (mm): 755 x 730 x 775
- Voltage: Single Phase
- Power: 3.6 kW
- Amperage: 16 A
- 2-layer insulation concept with 35mm microporous insulation board
- Socket supplied: Yes, 16A
- Thermocouple: Type S
- Insulation: Brick + 2 layers of 35 mm microtherm
- Reversible foot
- Lid opening assisted by gas struts
- Coating: Brushed stainless steel
- Upgradeable: No
- Plate dimensions: 350 mm
Includes TC 30 Controller:
Range of application:
Ceramics, laboratory Clearly structured control unit and easy to operate, for use in workshops, schools and hobby rooms.
- 5 firing programs, freely adjustable Delayed start programmable
- 1 dwell/soak time freely programmable
| Height | 775.0 |
|---|---|
| Width | 755.0 |
| Depth | 730.0 |
| Kilns Firing Capacity | 60 |
| Kilns Maximum User Temperature | 1260 |
| Kilns Maximum Application Temperature | 1300 |
| Kilns Chamber Height | 455.0 |
| Kilns Chamber Width | 400.0 |
| Kilns Chamber Depth | 400.0 |
