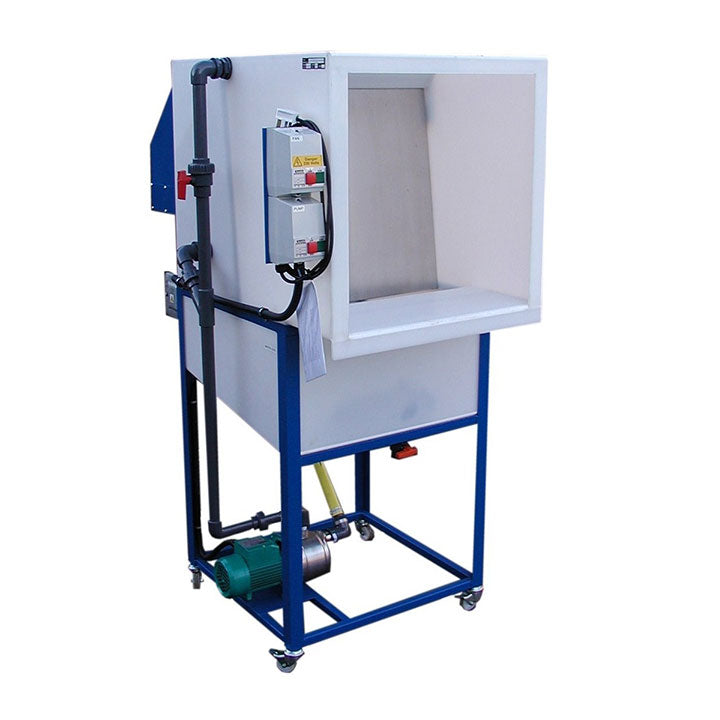

Gladstone G165 Waterwash Spray Booth

The Gladstone spray booth has been designed to meet the ever increasing need to protect our environment. The water Wash spray booth works on the principle of a curtain of continuous recycling water running down the rear face of the spray booth, a glaze spray is aimed towards this curtain, the spray being guided by a powerful extraction fan, the glaze is trapped by the water curtain, whilst the air stream is pulled through the booth and into a washable stainless steel pre-filter and finally into a washable filter bag. The excess glaze is washed into the tank and can at a later date be reclaimed depending on the type and colour of the glaze. There is a ball valve to allow the water to be drained and the contents of the tank removed. Any glaze materials can also be removed and disposed of safely. The booth is mounted on four castor wheels. The G165 is primarily designed to be used by the studio potter and educational faculties for low volume production, therefore the booth does not need ducting to atmosphere making it portable around the studio environment.

• Fan: Inline centrifugal
• Pump unit: Stainless steel self-priming.
• Power supply:230 volts single phase
• Construction: Fabricated steel stand with Polypropylene hood and stainless steel internal wetted parts
• Finish: Frame durable powder coated
• Dimensions:1655mm high x 800 mm wide x 1290 mm depth
• Hood internal dimensions:638mm high x 625 mm wide x 420 mm deep, working depth 350 mm.
