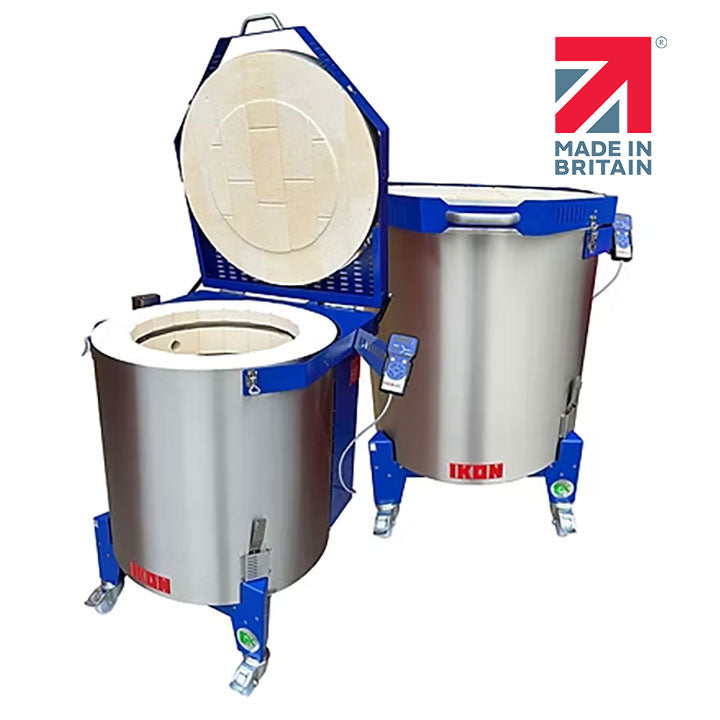

Kilncare Ikon V100 104 Litre Top Loading Kiln

The Kilncare IKON range are truly premium top loading kilns. The V100 kiln is ideal for all private users, studios, schools, and colleges. The IKON has many features that are options elsewhere, as standard, and is made from the highest quality materials here in Stoke on Trent, U.K. The kiln is constructed with a K23, low thermal insulation brick interior with high grade body soluble fibre and Micropore "super" insulation. The chamber and lid are 304 grade stainless steel, sitting on and supported by a powder coated "skeleton" frame with high-capacity castors, which are swivel and lockable at the front.

• Three-layer efficient insulation comprising of 75mm K23 grooved insulation brick and backed up with high grade body soluble fibre and Micropore insulation board.
• Three-layer lid seal comprising of a lid insert machined into the lid brick, a brick-to-brick seal, and a soft fibre outer seal.
• Kanthal A1 elements sit within the grooved brickwork of the side walls with retaining pegs to prevent unwelcome element "drooping".

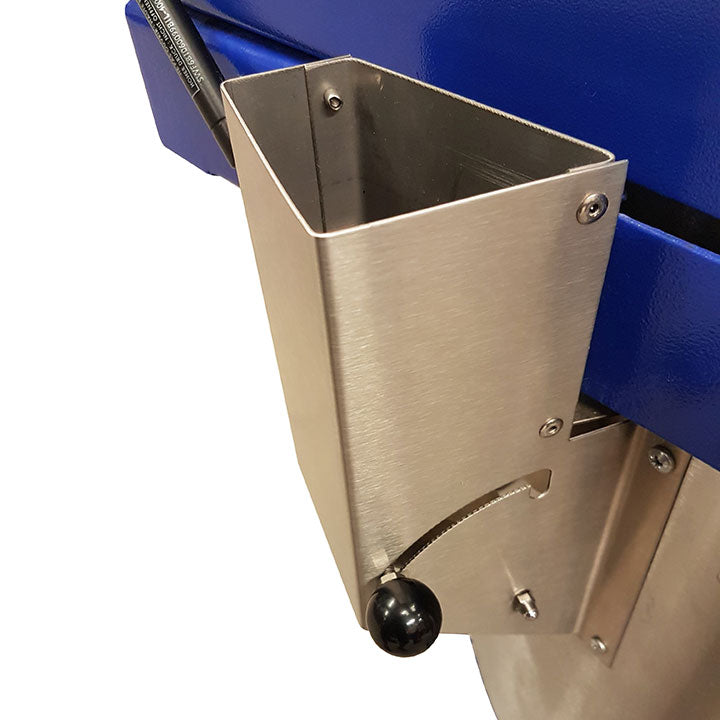

• Adjustable lower inlet and adjustable, shutter upper exhaust vent. (Optional 80mm tube adaptor for upper vent exhaust flue connection).

Specifications:

• Internal size 480mm (Diameter) x 560mm (Height).
• External Size 800mm (wide) x 934mm (deep) x 1025mm (High).
• *Width becomes 955mm if controller is added on the side*
• Firing capacity 104 litre.
• Kiln power: 7.3kw.
• Maximum Temperature 1315°C.
• Supply Required for Single Phase - 45 amps.
• Solid State Relay (SSR) control for near silent switching/operation and superb reliability.

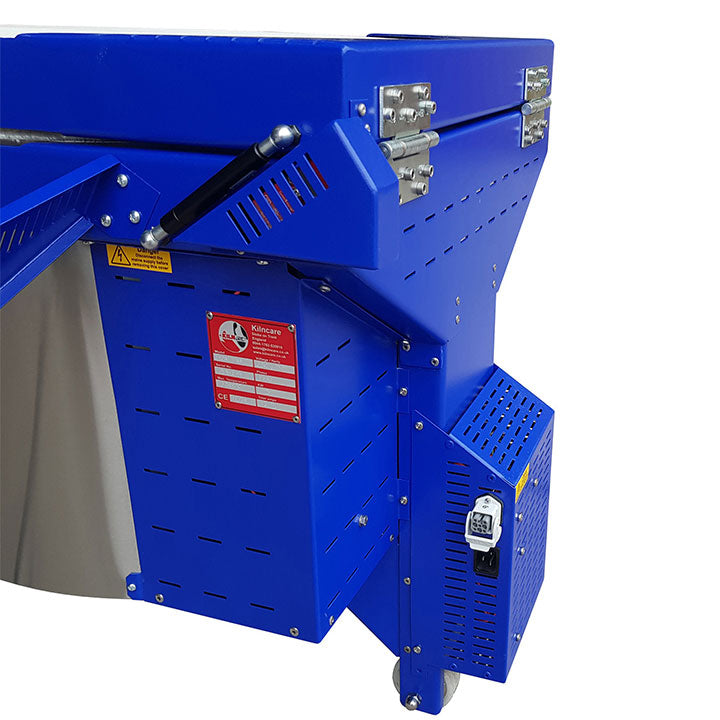

• Low level power box to keep switching components away from the heat of the kiln body.
• Warranty Period: 2 years (excluding elements).
• Optional remote access via the Kilncare GATEway app for android or Apple devices, or via the Kilncare GATEway website. Access your kiln on the go.

Safety Features:

• Dual contactors and SSR with over temperature monitoring provide protection against overfires, when used with Kilncare kiln controllers.
• Type R thermocouple for accuracy and longevity of use.
• Dual lid catches with padlock facilities to prevent unauthorised opening of the kiln.
• No hot vent bungs to handle or break as upper and lower vents are fitted with adjustable shutters.
• All Ikon kilns are ROHS and WEEE compliant.
• For more information about installation, positioning, and ventilation with your new kiln, please see our support section of the website.
•


Includes the U.K. built KCR32C Controller:

• KCR32C has 32 programs each with 32 segments, each segment comprises of a ramp speed, a target temperature and a hold period and can be either cooling or heating segments.
• The controller will show the power used by the kiln during a firing making for easy firing costings. Optional KCR32CWIFI is as KCR32C, but with WIFI access facility.
  Once added to a WIFI network, the kiln can be accessed via the GATEway app/ website.
• It can also be used in a very simple manner with ease for the most basic of firings or is capable of very complex cycles if required.
• Ideally suited to glass and pottery applications, with many scientific and industrial heat treatment applications.

Designed and made in the heart of “The Potteries” in Stoke on Trent, England. Manufactured by Kilncare, renowned as premium kiln manufacturers.
All spare parts in stock, here in our factory in Stoke on Trent. 6-7 weeks delivery.
