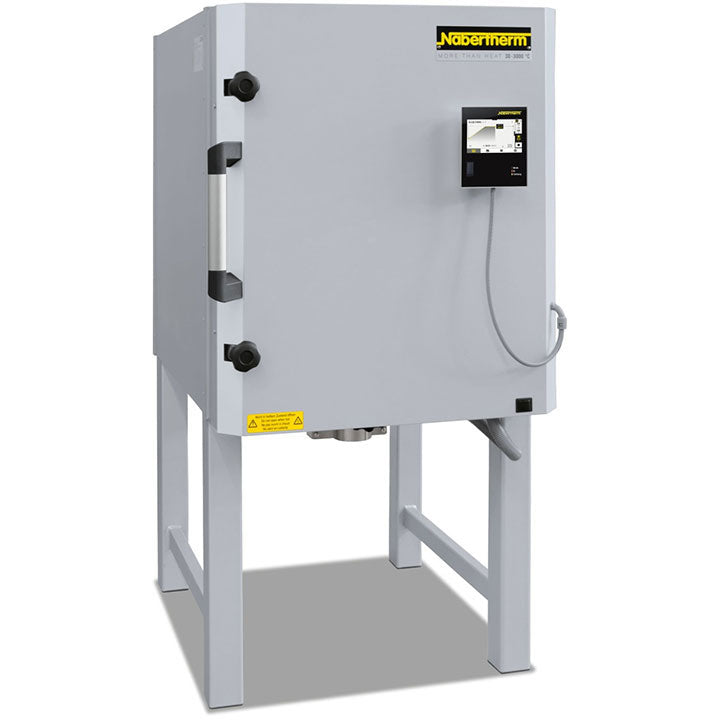

Nabertherm N 140E Chamber Pottery Kiln

The Nabertherm N140E front loading kiln is an economical solution for schools, ceramic workshops, and studios and other institutions. Ideal for operating temperatures of approximately 900°C or 1300°C. A dual shell housing provides for low outer temperatures. The controller can comfortably set firing profiles.

• Multi-layer insulation with light weight refactory bricks and energy-saving backing insulation adapted to the maximum temperature of the kiln.

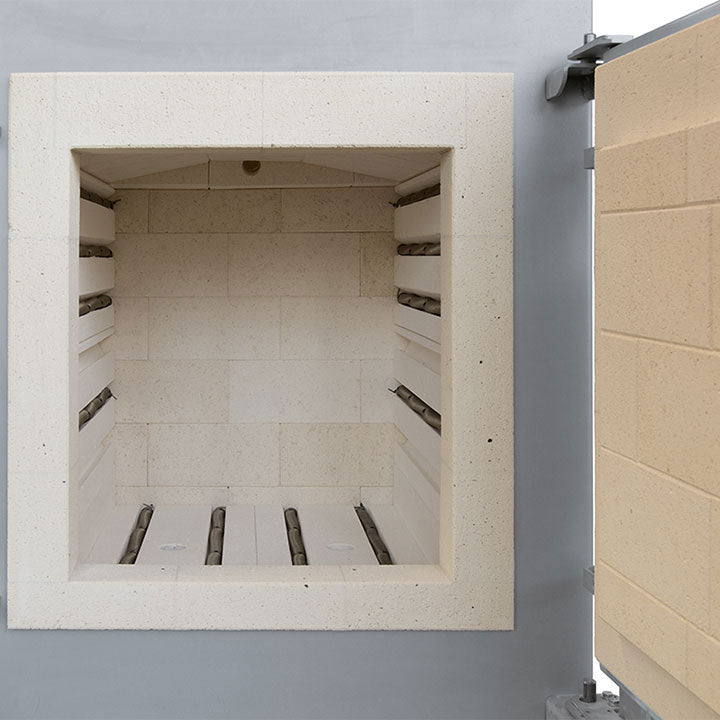

• Heating from three sides and a special arrangement of the heating elements ensure optimum temperature uniformity.
• Includes 3 ceramic supports and lower shelf to protect the bottom insulation and for safe stacking of the kiln furniture. (Kiln Furniture Sold Separately).

Specifications:

• Firing Capacity: 140 Litre
• Maximum user temperature (highest temperature the kiln goes to): 1340°C.
• Maximum application temperature (temperature upon repeated firing use for longevity) 1300°C
• Environment-friendly, long-life powder-coating of housing.
• Rugged, self-supporting, vaulted arch construction.
• Dual shell door with long live sealing, sealing grinded by hand (brick on brick), door is adjustable.
• Supply required 3 phase (Amps) 13a
• Includes DEKRA certification.
• Weight: 275kg

Safety features:

• Heating elements on support tubes ensure free heat radiation.
• Type S thermocouple.
• Dual-shell housing provides for low temperature and optimal corrosion protection. Galvanized steel sheets on the sides.
• Door safety switch shuts down power to the elements when the door is opened.

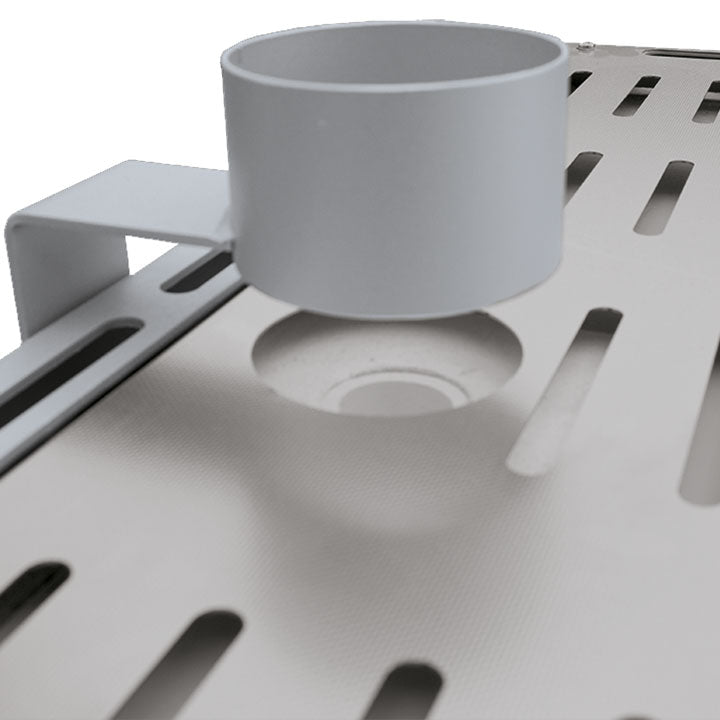

• Semi-automatic air inlet flap for residual drying in chamber up to 300 Litres. Flap closes automatically at a set temperature, does not have to be closed manually after the drying phase.
• Solid state relays low-noise heater operation.
• Protected door contact switch.

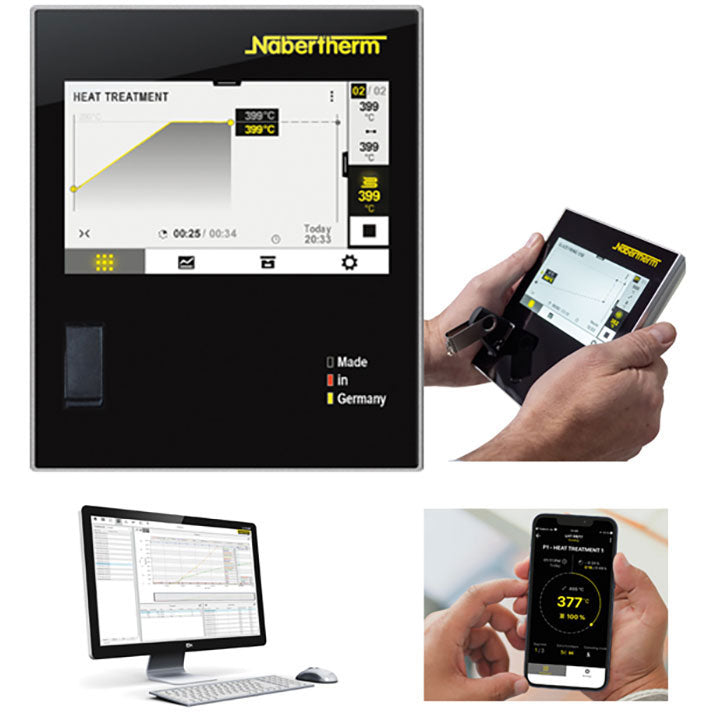

Includes AC590 Controller:

The AC590 impresses with its unique scope of performance and intuitive operation. In combination with the free “MyNabertherm” smartphone app, monitoring your kiln is even easier and more powerful than ever before. The operation and programming take place via a high-contrast, large touch panel, which shows exactly the information that is relevant at the moment.

• Transparent, graphical display of temperature curves
• Clear presentation of firing data
• 24 operating languages selectable
• Consistent, attractive design
• Easily understandable symbols for many functions
• Precise and accurate temperature control
• User levels
• Program status display with estimated end time and date
• Cone firing assistant "Conny" for easy start of your program
• Up to 50 programs with each 40 segments
• Documentation of firing curves on USB storage medium in .csv file format
• Service information can be read out via a USB stick
• Clear presentation
• Plain text display
• Can be configured for all kiln families
• Can be parameterized for different firings
• “Solar Mode” for utilizing electricity from photovoltaic systems with and without battery Delayed start possible
