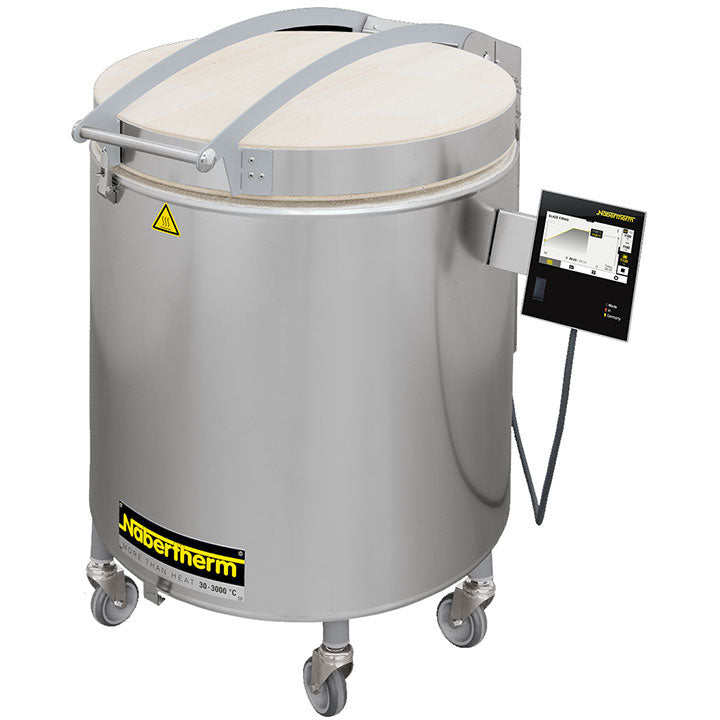

Nabertherm Top 45/L Toploading Kiln

The Nabertherm TOP45/L pottery kiln is the perfect kiln for a beginner, hobbyists, or a workshop. The kiln has an attractive design, low weight and good firing results are just a few of the advantages.

• Three-layer insulation with light refractory bricks and high quality, energy saving backing insulation.
• Top quality heating elements, optimum wire gauge and length for long life.
• Rapid switching cycles result in precise temperature control.

Specifications:

• Firing Capacity: 45 Litre
• Maximum user temperature (highest temperature the kiln goes to): 1320°C.
• Maximum application temperature (temperature upon repeated firing use for longevity) 1290°C
• Housing made from sheets of textured stainless steel.
• Lockable castors for easy transportation of kiln without the need for lifting.
• High quality, energy saving, special purpose back insulation
• Supply required single phase (Amps) 12.6a.
• Includes DEKRA certification.
• Weight: 66kg

Safety features:

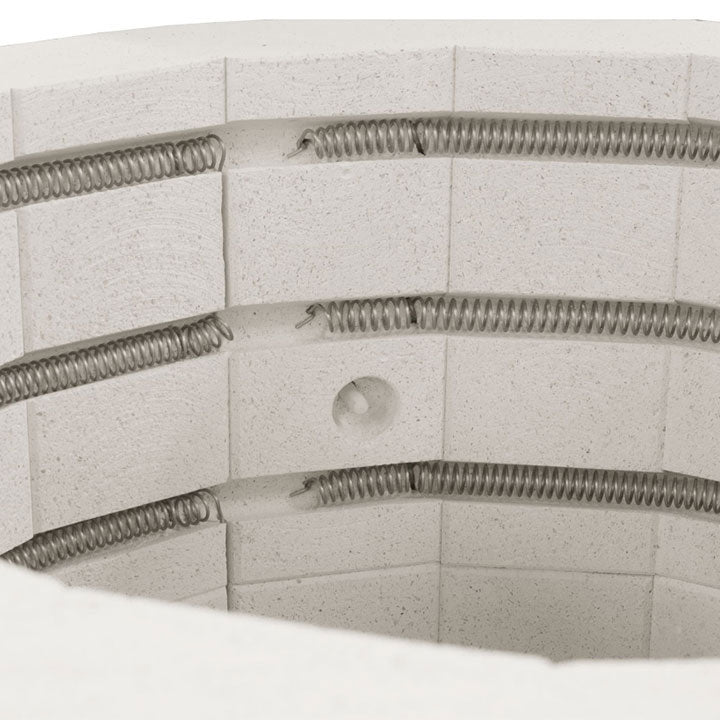

• Heating elements protected in grooves, heating from all around.
• Type S thermocouple.
• Multiple layers of insulation for low power consumption and low exterior temperatures

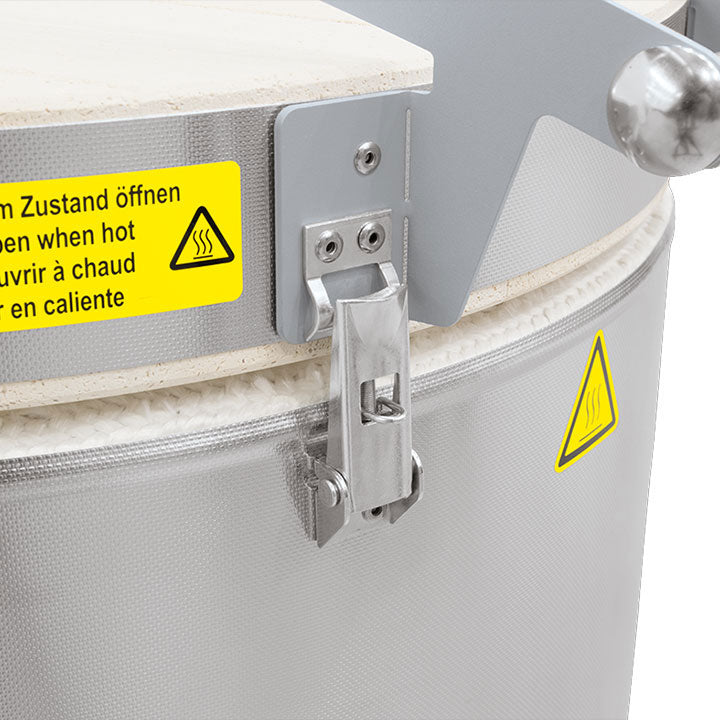

• Lid with adjustable quick release lock and padlock hasp.
• Wear free lid seal (brick on brick)

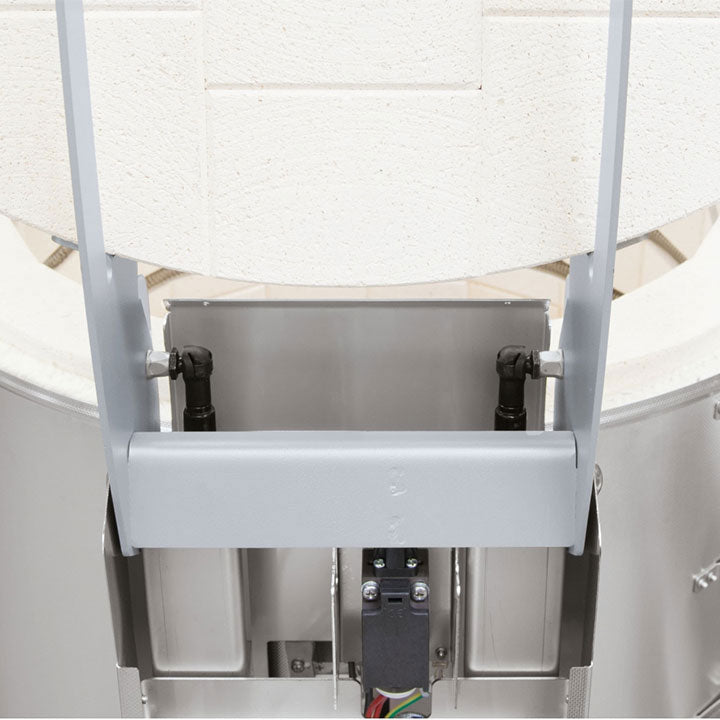

• Powerful gas dampers make lid opening extremely easy.
• Infinitely adjustable air inlet in opening in the kiln bottom for good ventilation and short cooling times.
• Exhaust air outlet on furnace side with stub for pipe of 80mm diameter.

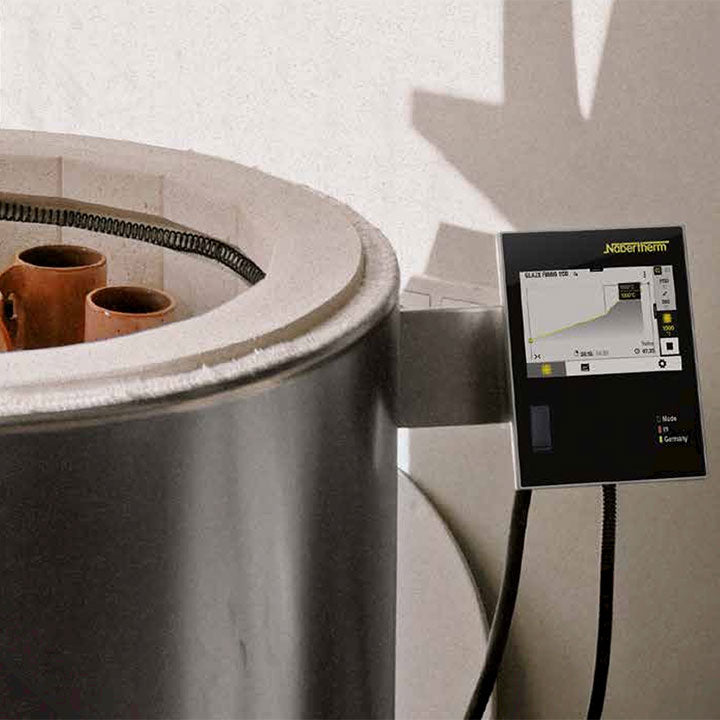

Includes AC590 Controller:

The AC590 impresses with its unique scope of performance and intuitive operation. In combination with the free “MyNabertherm” smartphone app, monitoring your kiln is even easier and more powerful than ever before. The operation and programming take place via a high-contrast, large touch panel, which shows exactly the information that is relevant at the moment.

• Transparent, graphical display of temperature curves
• Clear presentation of firing data
• 24 operating languages selectable
• Consistent, attractive design
• Easily understandable symbols for many functions
• Precise and accurate temperature control
• User levels
• Program status display with estimated end time and date
• Cone firing assistant "Conny" for easy start of your program
• Up to 50 programs with each 40 segments
• Documentation of firing curves on USB storage medium in .csv file format
• Service information can be read out via a USB stick
• Clear presentation
• Plain text display
• Can be configured for all kiln families
• Can be parameterized for different firings
• “Solar Mode” for utilizing electricity from photovoltaic systems with and without battery Delayed start possible
