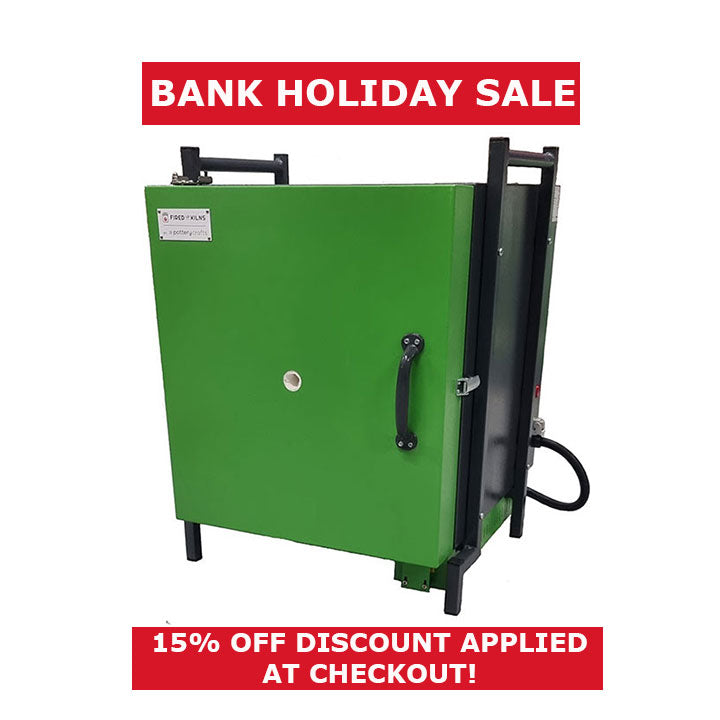

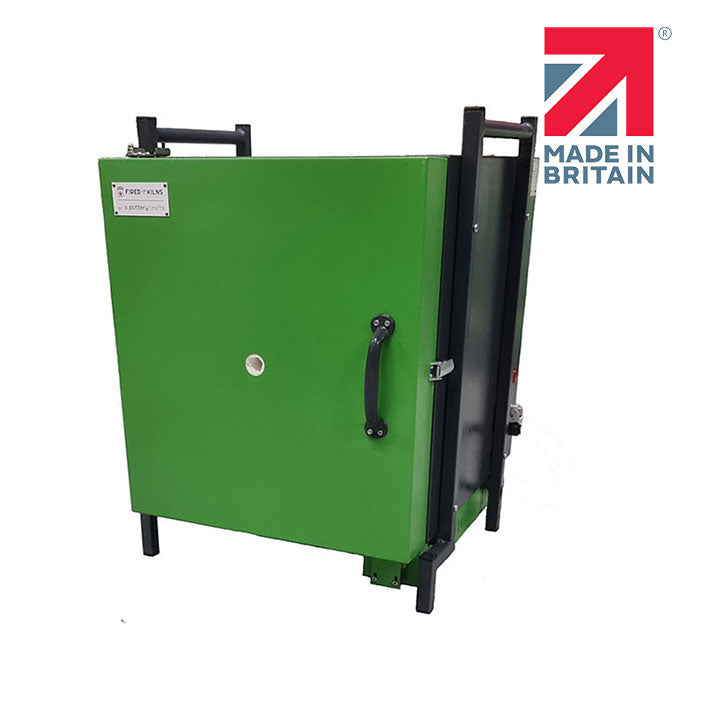

Potterycrafts Fireworker 50 Litre Front Loading Kiln

Potterycrafts Fireworker FL50 is based on a more traditional front-loading kiln. The kiln is ideal for all private users, studios, schools, and colleges where reliability and durability are essential. The kiln is constructed from a durable low thermal insulation brick with two high grade backup insulation boards all enclosed within a robust high quality pressed steel and powder coated frame.

• Two-layer efficient insulation comprising of the highest quality grooved insulation brick and backed up with high grade insulation board.

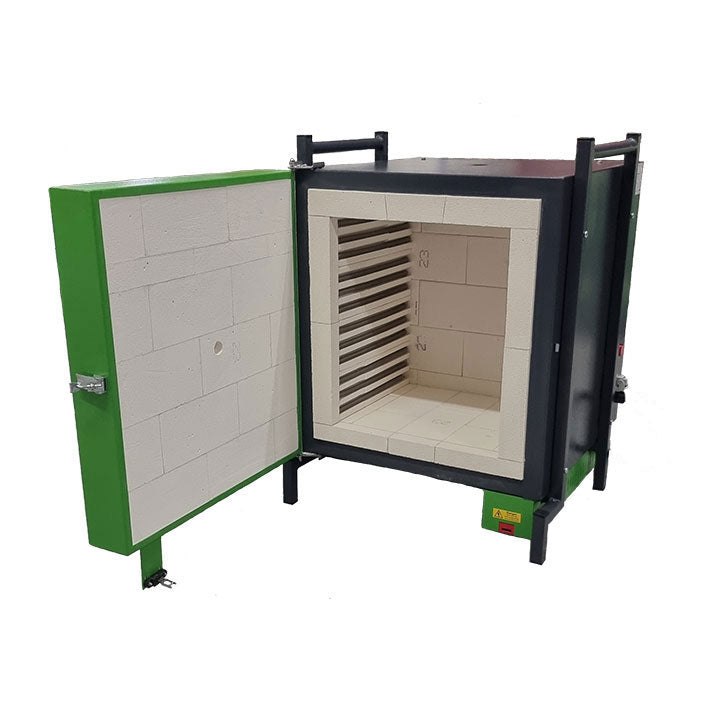

• Brick to brick door seal (no fibre seals which deteriorate) with a flush fit for better heat retention.

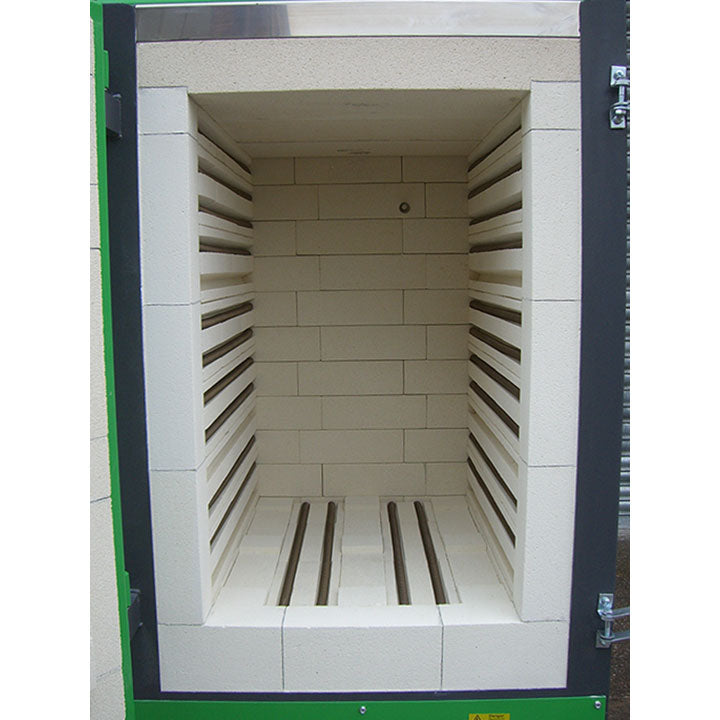

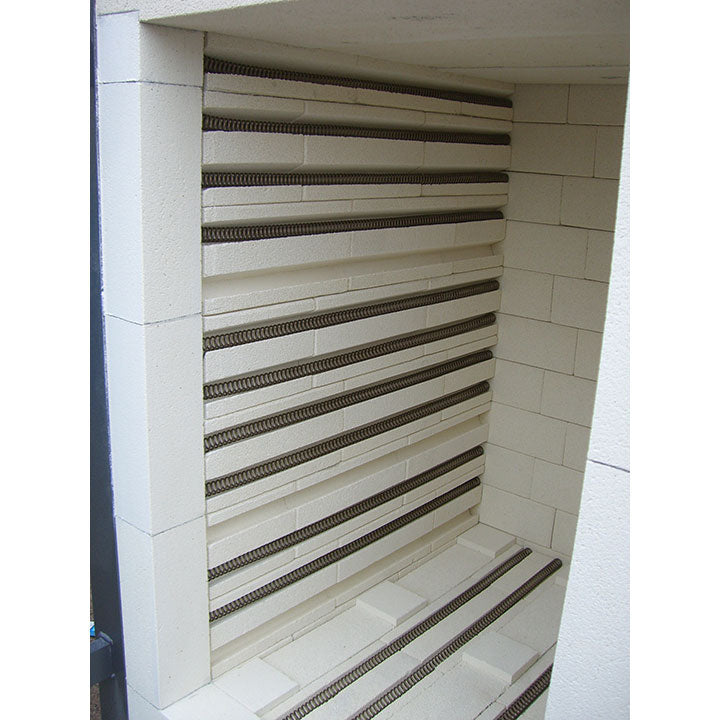

• Kanthal A1 elements sit within the grooved brickwork of the side walls and the floor of the kiln to allow uniform heat distribution throughout the chamber.
• Door Spy Hole/vent and flue vent with manual damper as standard (automated damper can be added at extra cost).

Specifications:

• Firing Capacity: 50 Litre.
• Kiln power: 3kw.
• Maximum Temperature ECO 1100c Standard 1300°C.
• Supply Required for Single Phase - ECO 13-amp socket or switched spur. Standard 25 amps Kiln power ECO 3kw Standard 4.5kw.
• Warranty Period: 2 years (excluding elements).

Designed and made in the heart of “The Potteries” in Stoke on Trent, England. Tried and tested formulas have made Potterycrafts kilns one of Europe’s best-selling brands for many years. All spare parts in stock, here in our factory in Stoke on Trent.

Safety Features:

• Dual contactors and over temperature monitoring provide protection against overfires, when used with Potterycrafts kiln controllers.
• Type R thermocouple for accuracy and longevity of use.
• Roof and door vent as standard for venting the kiln during firing and to aid cooling.
• Automatic safety interlock door switch ensures safe operation.
• All Potterycrafts kilns are ROHS and WEEE compliant.
• For more information about installation, positing and ventilation with your new kiln, please see our support section of the website.

Includes the U.K. built CERA-10+ Controller:

• The controller is the latest development in a long series of controllers. Incorporating new software giving improved efficiency and ease of programming together with up-to-date safety and diagnostic features.
• CERA-10+ has 32 programs each with 32 segments, each segment comprises of a ramp speed, a target temperature and a hold period and can be either cooling or heating segments. This is the ultimate controller offering every option that might be required. It can also be used in a very simple manner with ease for the most basic of firings. Ideally suited to glass and pottery applications, with many scientific and industrial heat treatment applications.
