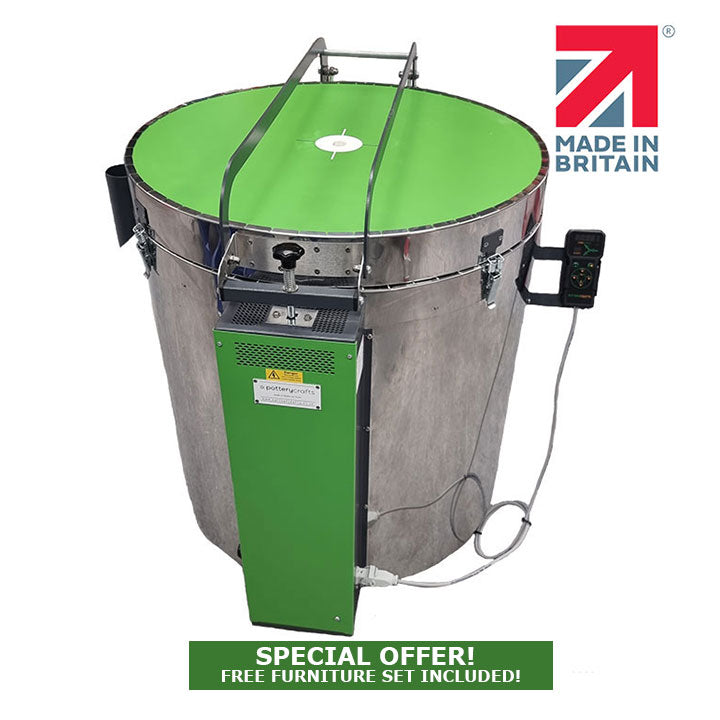

Potterycrafts Topworker 225 Litre Top Loading Kiln

Potterycrafts Topworker professional top loading kilns are designed and made in the heart of "The Potteries" Stoke on Trent UK. The TL225 kiln has a capacity of 225 litres, this model of kiln is ideal for professional studios, schools and colleges working on a medium to large scale. Our topworker kiln is constructed with a two-layer efficient insulation comprising of the highest quality insulation brick and ceramic blanket and is enclosed within a high grade folded stainless steel outer frame with spring loaded tension clamps to enable the kiln to always be kept ridged throughout its lifetime. Our experts are available to answer questions on the Topwoker kiln.

• 108mm Super-efficient Ultralite granular insulation for the floor of the kiln
• Grooved elements for equalised heating throughout the firing chamber
• Type R thermocouple for accuracy and longevity of use.
• Gas spring assistance to make lid opening and closing an easy process
• Three support bricks are in the base to enable a shelf/batt to be placed with stability above the insulation so allowing beneficial heat circulation.

Specifications:

• Firing Capacity: 225 Litre
• Maximum user temperature (highest temperature the kiln goes to): 1300°C.
• Maximum application temperature (temperature upon repeated firing use for longevity) 1240°C
• Kiln walls 76mm lightweight, high grade insulation brick plus 25mm backup insulation
• Kiln lid 88.5mm lightweight, high grade insulation.
• Fitted with 76mm castors for ease of movement, with a lockable castor.
• Ready to be fired on Single Phase, or 3 phase and neutral by simply adding a link bar at the point of connection.
• Supply required single phase 63amps.
• Supply required 3 phase and Neutral 25amps per phase.
• All spare parts in stock, here in our factory in Stoke on Trent.
• Includes 2-year warranty.

Safety features:

• Dual contactors and over temperature monitoring provide protection against overfires, when used with Potterycrafts kiln controllers.

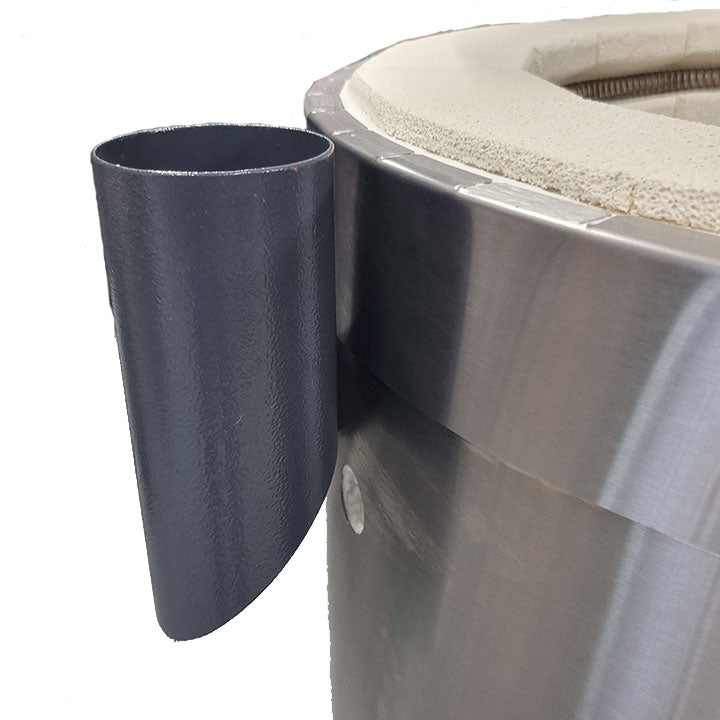

• Side vent with chimney that can be ducted to atmosphere if required.
• Lid vent holes allow venting/cooling of the kiln during or after the firing process.

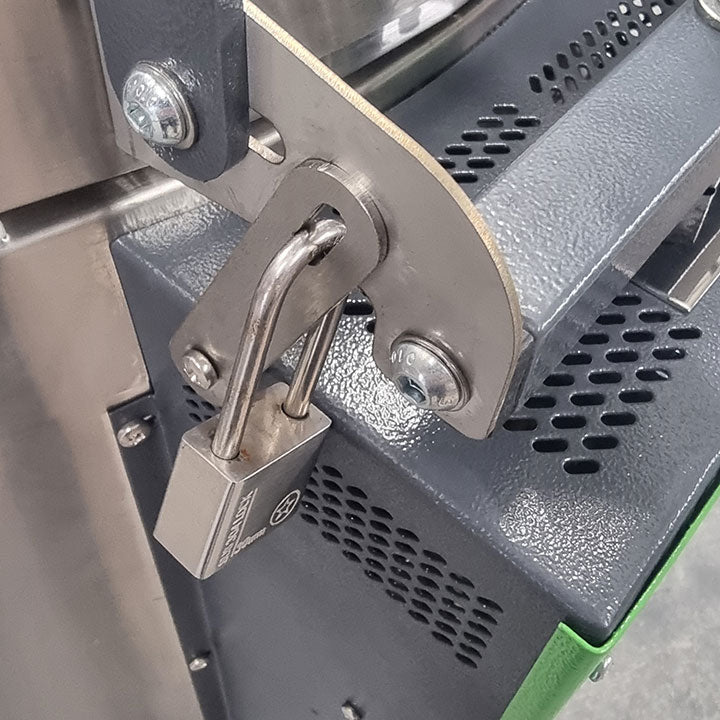

• Captive interlock safety switch, meaning the kiln will not turn on unless this is locked and in place, ensuring the highest level of safety
• RHOS and WEE compliant
• For more information about installation, positing and ventilation with your new kiln, please see our support section of the website.

Includes UK Built CERA-10+ Controller:

• The controller is the latest development in a long series of controllers, they incorporate new software giving improved efficiency and ease of programming together with up-to-date safety and diagnostic features.
• CERA-10+ has 32 programs each with 32 segments, each segment comprises of a ramp speed, a targe temperature and a hold period and can be wither cooling or heating segments. This is the ultimate controller offering every option that might be required, yet can also be used in a very simple manner with ease for the most basic of firings. Ideally suited to glass and pottery applications and many scientific, industrial, heat treatment applications.
